Kwang Sung Steel Pipe CO., LTD

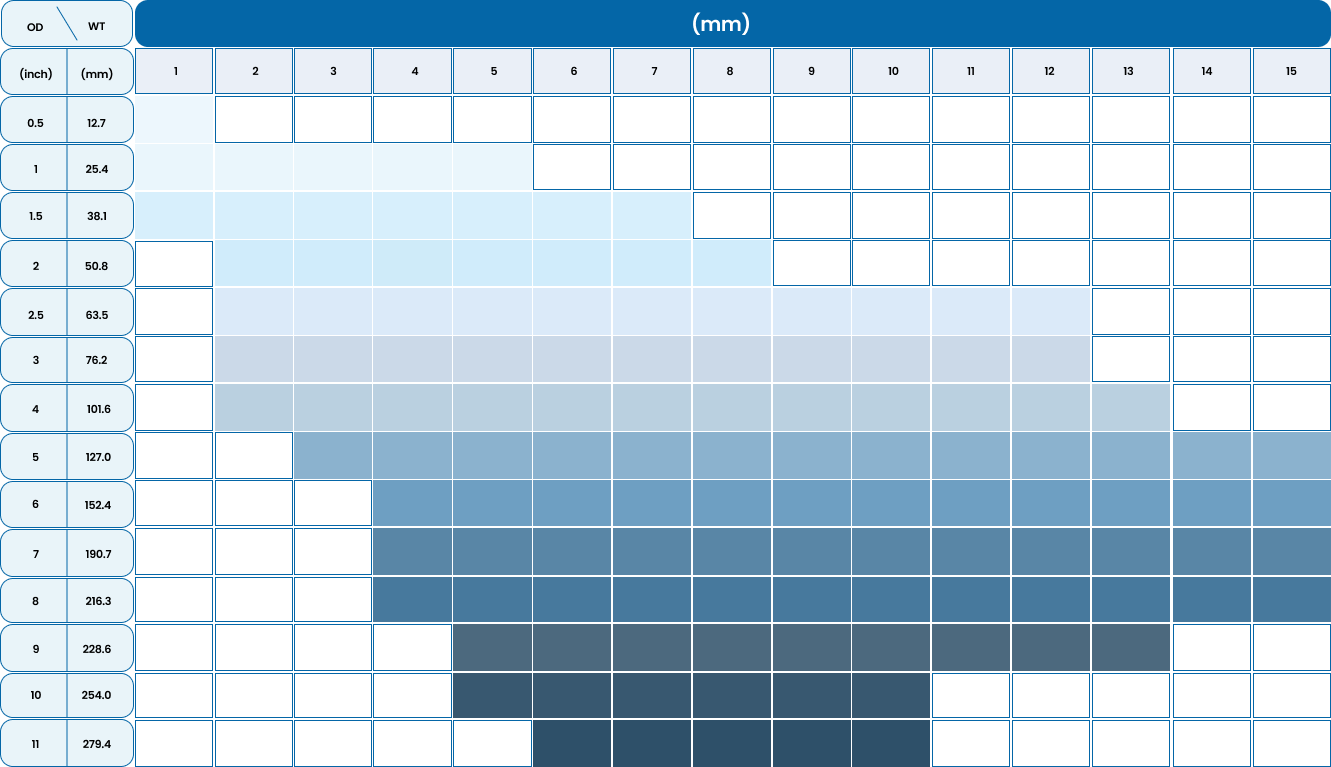

생성가능범위 (이외의 크기는 주문제작 가능)
재질표
※ 스크롤을 움직여보세요!| Standard | Designation | Conditions | Steel Grade | |
|---|---|---|---|---|
| EN | EN 10305-1 | Seamless Cold Drawn Tubes | +C, +LC, +SR, +A, +N | E215, E235, E355 |
| EN 10305-2 | Welded Cold Drawn Tubes | E155, E195, E235, E355 | ||
| EN 10305-4 | Seamless Cold Drawn Tubes for Hydraulic and Pneumatic Power Systems | E215, E235, E355 | ||
| EN 10305-5 | Welded Cold Drawn Tubes for Hydraulic and Pneumatic Power Systems | E155, E195, E235, E355 | ||
| ASTM | ASTM A 513 | Electric-Resistance-Welded Carbon and Alloy Steel Mechanical Tubing | Type 3, Type 4, Type 5, Type 6 |
1008 ~ 1045, 4130 |
| ASTM A 519 | Seamless Carbon and Alloy Steel Mechanical Tubing | CW +A, +N, +SR |
1008 ~ 1045, 1541 | |
| JIS | JIS G 3444 | Carbon Steel Tubes for Genaral Structural Purposes | E-C, S-C | STK290 ~ STK540 |
| JIS G 3445 | Carbon Steel Tubes for Machine Structural Purposes | E-C, S-C | STKM11A ~ STKM16C | |
| JIS G 3472 | Electric-Resistance-Welded Carbon Steel Tubes for Automobile | E-C | STAM290 ~ STAM540 | |
| JIS G 3473 | Carbon Steel Tubes for Cylinder Barrels | E-C, S-C, +SR | STC440 ~ STC590 B | |
